INSULATED RING TERMINALS




  • Available in following standards: DIN46237 and JIS

  • Material/Type: E-CU

  • Insulation: PVC, PA, PC

  • Easy entry & easy entry with copper tube available for all insulations upon request.

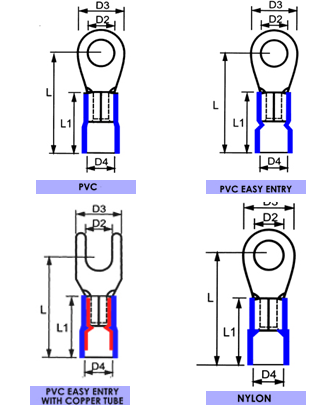

Part no PCS / PACK D3 mm L1 mm D4 mm L mm D2mm WIRE RANGE mm² MATERIAL / TYPE
GDR2.5-1 PVR 100 / 500 6.0 11.5 4.1 17.5 2.8 0.5-1.5 PVC
GDR3-1 PVR 100 / 500 6.0 11.5 4.1 17.5 3.2 0.5-1.5 PVC
GDR3.5-1 PVR 100 / 500 6.0 11.5 4.1 17.5 3.7 0.5-1.5 PVC
GDR4-1S PVR 100 / 500 6.8 11.5 4.1 18.0 4.3 0.5-1.5 PVC
GDR4-1 PVR 100 / 500 8.0 11.5 4.1 18.0 4.3 0.5-1.5 PVC
GDR5-1S PVR 100 / 500 8.0 11.5 4.1 19.5 5.3 0.5-1.5 PVC
GDR5-1 PVR 100 / 500 10.0 11.5 4.1 19.5 5.3 0.5-1.5 PVC
GDR6-1 PVR 100 / 500 11.0 11.5 4.1 21.7 6.5 0.5-1.5 PVC
GDR8-1 PVR 100 / 500 14.0 11.5 4.1 23.2 8.4 0.5-1.5 PVC
GDR10-1 PVR 100 / 500 18.0 11.5 4.1 25.0 10.5 0.5-1.5 PVC
GDR3-2.5 PVB 100 / 500 6.0 11.5 4.5 17.5 3.2 1.5-2.5 PVC
GDR3.5-2.5 PVB 100 / 500 6.0 11.5 4.5 17.5 3.7 1.5-2.5 PVC
GDR4-2.5 PVB 100 / 500 8.0 11.5 4.5 18.0 4.3 1.5-2.5 PVC
GDR4-2.5S PVB 100 / 500 6.8 11.5 4.5 18.0 4.3 1.5-2.5 PVC
GDR5-2.5S PVB 100 / 500 8.0 11.5 4.5 20.0 5.3 1.5-2.5 PVC
GDR5-2.5 PVB 100 / 500 10.0 11.5 4.5 20.0 5.3 1.5-2.5 PVC
GDR6-2.5 PVB 100 / 500 11.0 11.5 4.5 22.3 6.5 1.5-2.5 PVC
GDR8-2.5 PVB 100 / 500 14.0 11.5 4.5 23.5 8.4 1.5-2.5 PVC
GDR10-2.5S PVB 100 / 500 15.0 11.5 4.5 25.0 10.5 1.5-2.5 PVC
GDR10-2.5 PVB 100 / 500 18.0 11.5 4.5 25.0 10.5 1.5-2.5 PVC
GDR12-2.5 PVB 100 / 500 18.0 11.5 4.5 25.0 13.0 1.5-2.5 PVC
GDR4-6 PVY 100 / 500 8.0 13.0 6.4 21.1 4.3 2.5-6.0 PVC
GDR5-6 PVY 100 / 500 10.0 13.0 6.4 22.1 5.3 2.5-6.0 PVC
GDR6-6 PVY 100 / 500 11.0 13.0 6.4 23.1 6.5 2.5-6.0 PVC
GDR8-6 PVY 100 / 500 14.0 13.0 6.4 26.1 8.4 2.5-6.0 PVC
GDR10-6 PVY 100 / 500 18.0 13.0 6.4 28.0 10.5 2.5-6.0 PVC
GDR12-6 PVY 100 / 500 19.0 13.0 6.4 33.0 13.0 2.5-6.0 PVC
GDR2.5-1 PVER 100 / 500 6.0 11.5 4.1 17.5 2.8 0.5-1.5 PVC EASY ENTRY
GDR3-1 PVER 100 / 500 6.0 11.5 4.1 17.5 3.2 0.5-1.5 PVC EASY ENTRY
GDR3.5-1 PVER 100 / 500 6.0 11.5 4.1 17.5 3.7 0.5-1.5 PVC EASY ENTRY
GDR4-1S PVER 100 / 500 6.8 11.5 4.1 18.0 4.3 0.5-1.5 PVC EASY ENTRY
GDR4-1 PVER 100 / 500 8.0 11.5 4.1 18.0 4.3 0.5-1.5 PVC EASY ENTRY
GDR5-1S PVER 100 / 500 8.0 11.5 4.1 19.5 5.3 0.5-1.5 PVC EASY ENTRY
GDR5-1 PVER 100 / 500 10.0 11.5 4.1 19.5 5.3 0.5-1.5 PVC EASY ENTRY
GDR6-1 PVER 100 / 500 11.0 11.5 4.1 21.7 6.5 0.5-1.5 PVC EASY ENTRY
GDR8-1 PVER 100 / 500 14.0 11.5 4.1 23.2 8.4 0.5-1.5 PVC EASY ENTRY
GDR10-1 PVER 100 / 500 18.0 11.5 4.1 25.0 10.5 0.5-1.5 PVC EASY ENTRY
GDR3-2.5 PVEB 100 / 500 6.0 11.5 4.5 17.5 3.2 1.5-2.5 PVC EASY ENTRY
GDR3.5-2.5 PVEB 100 / 500 6.0 11.5 4.5 17.5 3.7 1.5-2.5 PVC EASY ENTRY
GDR4-2.5 PVEB 100 / 500 8.0 11.5 4.5 18.0 4.3 1.5-2.5 PVC EASY ENTRY
GDR4-2.5S PVEB 100 / 500 6.8 11.5 4.5 18.0 4.3 1.5-2.5 PVC EASY ENTRY
GDR5-2.5S PVEB 100 / 500 8.0 11.5 4.5 20.0 5.3 1.5-2.5 PVC EASY ENTRY
GDR5-2.5 PVEB 100 / 500 10.0 11.5 4.5 20.0 5.3 1.5-2.5 PVC EASY ENTRY
GDR6-2.5 PVEB 100 / 500 11.0 11.5 4.5 22.3 6.5 1.5-2.5 PVC EASY ENTRY
GDR8-2.5 PVEB 100 / 500 14.0 11.5 4.5 23.5 8.4 1.5-2.5 PVC EASY ENTRY
GDR10-2.5S PVEB 100 / 500 15.0 11.5 4.5 25.0 10.5 1.5-2.5 PVC EASY ENTRY
GDR10-2.5 PVEB 100 / 500 18.0 11.5 4.5 25.0 10.5 1.5-2.5 PVC EASY ENTRY
GDR12-2.5 PVEB 100 / 500 18.0 11.5 4.5 25.0 13.0 1.5-2.5 PVC EASY ENTRY
GDR4-6 PVEY 100 / 500 8.0 13.0 6.4 21.1 4.3 2.5-6.0 PVC EASY ENTRY
GDR5-6 PVEY 100 / 500 10.0 13.0 6.4 22.1 5.3 2.5-6.0 PVC EASY ENTRY
GDR6-6 PVEY 100 / 500 11.0 13.0 6.4 23.1 6.5 2.5-6.0 PVC EASY ENTRY
GDR8-6 PVEY 100 / 500 14.0 13.0 6.4 26.1 8.4 2.5-6.0 PVC EASY ENTRY
GDR10-6 PVEY 100 / 500 18.0 13.0 6.4 28.0 10.5 2.5-6.0 PVC EASY ENTRY
GDR12-6 PVEY 100 / 500 19.0 13.0 6.4 33.0 13.0 2.5-6.0 PVC EASY ENTRY
GDR2.5-1 PVECR 100 / 500 6.0 11.5 4.1 17.5 2.8 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR3-1 PVECR 100 / 500 6.0 11.5 4.1 17.5 3.2 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR3.5-1 PVECR 100 / 500 6.0 11.5 4.1 17.5 3.7 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR4-1S PVECR 100 / 500 6.8 11.5 4.1 18.0 4.3 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR4-1 PVECR 100 / 500 8.0 11.5 4.1 18.0 4.3 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR5-1S PVECR 100 / 500 8.0 11.5 4.1 19.5 5.3 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR5-1 PVECR 100 / 500 10.0 11.5 4.1 19.5 5.3 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR6-1 PVECR 100 / 500 11.0 11.5 4.1 21.7 6.5 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR8-1 PVECR 100 / 500 14.0 11.5 4.1 23.2 8.4 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR10-1 PVECR 100 / 500 18.0 11.5 4.1 25.0 10.5 0.5-1.5 PVC EASY ENTRY WITH COPPER TUBE
GDR3-2.5 PVECB 100 / 500 6.0 11.5 4.5 17.5 3.2 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR3.5-2.5 PVECB 100 / 500 6.0 11.5 4.5 17.5 3.7 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR4-2.5 PVECB 100 / 500 8.0 11.5 4.5 18.0 4.3 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR4-2.5S PVECB 100 / 500 6.8 11.5 4.5 18.0 4.3 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR5-2.5S PVECB 100 / 500 8.0 11.5 4.5 20.0 5.3 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR5-2.5 PVECB 100 / 500 10.0 11.5 4.5 20.0 5.3 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR6-2.5 PVECB 100 / 500 11.0 11.5 4.5 22.3 6.5 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR8-2.5 PVECB 100 / 500 14.0 11.5 4.5 23.5 8.4 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR10-2.5S PVECB 100 / 500 15.0 11.5 4.5 25.0 10.5 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR10-2.5 PVECB 100 / 500 18.0 11.5 4.5 25.0 10.5 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR12-2.5 PVECB 100 / 500 18.0 11.5 4.5 25.0 13.0 1.5-2.5 PVC EASY ENTRY WITH COPPER TUBE
GDR4-6 PVECY 100 / 500 8.0 13.0 6.4 21.1 4.3 2.5-6.0 PVC EASY ENTRY WITH COPPER TUBE
GDR5-6 PVECY 100 / 500 10.0 13.0 6.4 22.1 5.3 2.5-6.0 PVC EASY ENTRY WITH COPPER TUBE
GDR6-6 PVECY 100 / 500 11.0 13.0 6.4 23.1 6.5 2.5-6.0 PVC EASY ENTRY WITH COPPER TUBE
GDR8-6 PVECY 100 / 500 14.0 13.0 6.4 26.1 8.4 2.5-6.0 PVC EASY ENTRY WITH COPPER TUBE
GDR10-6 PVECY 100 / 500 18.0 13.0 6.4 28.0 10.5 2.5-6.0 PVC EASY ENTRY WITH COPPER TUBE
GDR12-6 PVECY 100 / 500 19.0 13.0 6.4 33.0 13.0 2.5-6.0 PVC EASY ENTRY WITH COPPER TUBE
GDR2.5-1 NR 100 / 500 6.0 11.5 4.1 17.5 2.8 0.5-1.5 NYLON
GDR3-1 NR 100 / 500 6.0 11.5 4.1 17.5 3.2 0.5-1.5 NYLON
GDR3.5-1 NR 100 / 500 6.0 11.5 4.1 17.5 3.7 0.5-1.5 NYLON
GDR4-1S NR 100 / 500 6.8 11.5 4.1 18.0 4.3 0.5-1.5 NYLON
GDR4-1 NR 100 / 500 8.0 11.5 4.1 18.0 4.3 0.5-1.5 NYLON
GDR5-1S NR 100 / 500 8.0 11.5 4.1 19.5 5.3 0.5-1.5 NYLON
GDR5-1 NR 100 / 500 10.0 11.5 4.1 19.5 5.3 0.5-1.5 NYLON
GDR6-1 NR 100 / 500 11.0 11.5 4.1 21.7 6.5 0.5-1.5 NYLON
GDR8-1 NR 100 / 500 14.0 11.5 4.1 23.2 8.4 0.5-1.5 NYLON
GDR10-1 NR 100 / 500 18.0 11.5 4.1 25.0 10.5 0.5-1.5 NYLON
GDR3-2.5 NB 100 / 500 6.0 11.5 4.5 17.5 3.2 1.5-2.5 NYLON
GDR3.5-2.5 NB 100 / 500 6.0 11.5 4.5 17.5 3.7 1.5-2.5 NYLON
GDR4-2.5 NB 100 / 500 8.0 11.5 4.5 18.0 4.3 1.5-2.5 NYLON
GDR4-2.5S NB 100 / 500 6.8 11.5 4.5 18.0 4.3 1.5-2.5 NYLON
GDR5-2.5S NB 100 / 500 8.0 11.5 4.5 20.0 5.3 1.5-2.5 NYLON
GDR5-2.5 NB 100 / 500 10.0 11.5 4.5 20.0 5.3 1.5-2.5 NYLON
GDR6-2.5 NB 100 / 500 11.0 11.5 4.5 22.3 6.5 1.5-2.5 NYLON
GDR8-2.5 NB 100 / 500 14.0 11.5 4.5 23.5 8.4 1.5-2.5 NYLON
GDR10-2.5S NB 100 / 500 15.0 11.5 4.5 25.0 10.5 1.5-2.5 NYLON
GDR10-2.5 NB 100 / 500 18.0 11.5 4.5 25.0 10.5 1.5-2.5 NYLON
GDR12-2.5 NB 100 / 500 18.0 11.5 4.5 25.0 13.0 1.5-2.5 NYLON
GDR4-6 NY 100 / 500 8.0 13.0 6.4 21.1 4.3 2.5-6.0 NYLON
GDR5-6 NY 100 / 500 10.0 13.0 6.4 22.1 5.3 2.5-6.0 NYLON
GDR6-6 NY 100 / 500 11.0 13.0 6.4 23.1 6.5 2.5-6.0 NYLON
GDR8-6 NY 100 / 500 14.0 13.0 6.4 26.1 8.4 2.5-6.0 NYLON
GDR10-6 NY 100 / 500 18.0 13.0 6.4 28.0 10.5 2.5-6.0 NYLON
GDR12-6 NY 100 / 500 19.0 13.0 6.4 33.0 13.0 2.5-6.0 NYLON
GDR2.5-1 PR 100 / 500 6.0 11.5 4.1 17.5 2.8 0.5-1.5 PC
GDR3-1 PR 100 / 500 6.0 11.5 4.1 17.5 3.2 0.5-1.5 PC
GDR3.5-1 PR 100 / 500 6.0 11.5 4.1 17.5 3.7 0.5-1.5 PC
GDR4-1S PR 100 / 500 6.8 11.5 4.1 18.0 4.3 0.5-1.5 PC
GDR4-1 PR 100 / 500 8.0 11.5 4.1 18.0 4.3 0.5-1.5 PC
GDR5-1S PR 100 / 500 8.0 11.5 4.1 19.5 5.3 0.5-1.5 PC
GDR5-1 PR 100 / 500 10.0 11.5 4.1 19.5 5.3 0.5-1.5 PC
GDR6-1 PR 100 / 500 11.0 11.5 4.1 21.7 6.5 0.5-1.5 PC
GDR8-1 PR 100 / 500 14.0 11.5 4.1 23.2 8.4 0.5-1.5 PC
GDR10-1 PR 100 / 500 18.0 11.5 4.1 25.0 10.5 0.5-1.5 PC
GDR3-2.5 PB 100 / 500 6.0 11.5 4.5 17.5 3.2 1.5-2.5 PC
GDR3.5-2.5 PB 100 / 500 6.0 11.5 4.5 17.5 3.7 1.5-2.5 PC
GDR4-2.5 PB 100 / 500 8.0 11.5 4.5 18.0 4.3 1.5-2.5 PC
GDR4-2.5S PB 100 / 500 6.8 11.5 4.5 18.0 4.3 1.5-2.5 PC
GDR5-2.5S PB 100 / 500 8.0 11.5 4.5 20.0 5.3 1.5-2.5 PC
GDR5-2.5 PB 100 / 500 10.0 11.5 4.5 20.0 5.3 1.5-2.5 PC
GDR6-2.5 PB 100 / 500 11.0 11.5 4.5 22.3 6.5 1.5-2.5 PC
GDR8-2.5 PB 100 / 500 14.0 11.5 4.5 23.5 8.4 1.5-2.5 PC
GDR10-2.5S PB 100 / 500 15.0 11.5 4.5 25.0 10.5 1.5-2.5 PC
GDR10-2.5 PB 100 / 500 18.0 11.5 4.5 25.0 10.5 1.5-2.5 PC
GDR12-2.5 PB 100 / 500 18.0 11.5 4.5 25.0 13.0 1.5-2.5 PC
GDR4-6 PY 100 / 500 8.0 13.0 6.4 21.1 4.3 2.5-6.0 PC
GDR5-6 PY 100 / 500 10.0 13.0 6.4 22.1 5.3 2.5-6.0 PC
GDR6-6 PY 100 / 500 11.0 13.0 6.4 23.1 6.5 2.5-6.0 PC
GDR8-6 PY 100 / 500 14.0 13.0 6.4 26.1 8.4 2.5-6.0 PC
GDR10-6 PY 100 / 500 18.0 13.0 6.4 28.0 10.5 2.5-6.0 PC
GDR12-6 PY 100 / 500 19.0 13.0 6.4 33.0 13.0 2.5-6.0 PC
