FULL VINYL-INSULATED FEMALE DISCONNECTORS

  • Material/Type: E-CU

  • Insulation: PVC

  • PA insulation upon request.

  • Easy entry & easy entry with copper tube available for all insulations upon request.

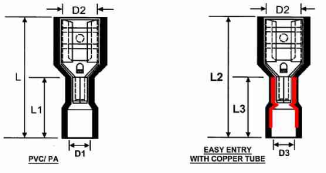

Part no PCS / PACK D1 mm D2 mm D3 mm L3 mm L2 mm L1 mm L mm WIRE RANGE mm² (AWG) MATERIAL / TYPE
GLVD 1-4.8F5R 100 / 500 4.0 5.0 4.0 10.5 20.0 10.0 19.5 0.25 - 1.65 (22 - 16) CUZN
GLVD 1-4.8F8R 100 / 500 4.0 5.0 4.0 10.5 20.0 10.0 19.5 0.25 - 1.65 (22 - 16) CUZN
GLVD 1-6.3FR 100 / 500 4.0 6.0 4.0 10.5 22.0 10.0 21.5 0.25 - 1.65 (22 - 16) CUZN
GLVD 2-4.8F5B 100 / 500 4.5 5.0 4.9 11.0 20.0 10.0 19.5 1.04 - 2.63 (16 - 14) CUZN
GLVD 2-4.8F8B 100 / 500 4.5 5.0 4.9 11.0 20.0 10.0 19.5 1.04 - 2.63 (16 - 14) CUZN
GLVD 2-6.3FB 100 / 500 4.5 6.6 4.9 11.0 22.0 10.0 21.5 1.04 - 2.63 (16 - 14) CUZN
GLVD 5-6.3FY 100 / 500 5.5 6.6 6.6 14.0 24.5 13.0 24.5 2.63 - 6.64 (12 - 10) CUZN
GLVD 1-4.8F5ECR 100 / 500 4.0 5.0 4.0 10.5 20.0 10.0 19.5 0.25 - 1.65 (22 - 16) CUZN EASY ENTRY WITH COPPER SLEEVE
GLVD 1-4.8F8ECR 100 / 500 4.0 5.0 4.0 10.5 20.0 10.0 19.5 0.25 - 1.65 (22 - 16) CUZN EASY ENTRY WITH COPPER SLEEVE
GLVD 1-6.3FECR 100 / 500 4.0 6.0 4.0 10.5 22.0 10.0 21.5 0.25 - 1.65 (22 - 16) CUZN EASY ENTRY WITH COPPER SLEEVE
GLVD 2-4.8F5ECB 100 / 500 4.5 5.0 4.9 11.0 20.0 10.0 19.5 1.04 - 2.63 (16 - 14) CUZN EASY ENTRY WITH COPPER SLEEVE
GLVD 2-4.8F8ECB 100 / 500 4.5 5.0 4.9 11.0 20.0 10.0 19.5 1.04 - 2.63 (16 - 14) CUZN EASY ENTRY WITH COPPER SLEEVE
GLVD 2-6.3FECB 100 / 500 4.5 6.6 4.9 11.0 22.0 10.0 21.5 1.04 - 2.63 (16 - 14) CUZN EASY ENTRY WITH COPPER SLEEVE
GLVD 5-6.3FECY 100 / 500 5.5 6.6 6.6 14.0 24.5 13.0 24.5 2.63 - 6.64 (12 - 10) CUZN EASY ENTRY WITH COPPER SLEEVE
